Box content: · Station UV Phototherapy Lamp ·
Two Medical PHILIPS bulbs 311 nm Narrow band UVB: model – PL-9W/01/2P ·365nm UVA: mode_PL-S9W/10/2P UV glasses · User Manual

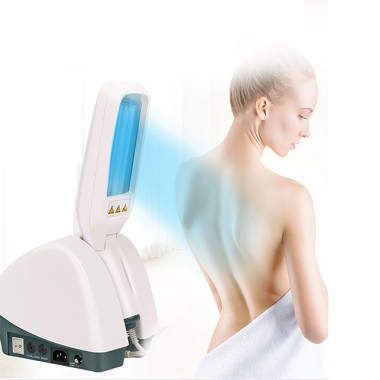

KN-4006A/B UV Phototherapy Introduction
KN-4006BL table-top uv therapy for home use is developed by kernel medical, adopt company Narrow band UVB 311nm lamp(PL-S9W/01/2P) or 365nm UVA: mode_PL-S9W/10/2P. Through the microcomputer control system, and set the treatment time,simple operation,It is the one of the most popular product for treatment of Psoriasis,vitiligo pityriasis rosea and eczema etc.
KN-4006BL uv phototherapy adopts two NB UV-B or UVA bulbs, and effective irradiation area is 104CM2,. UV phototherapy is very effective for Psoriasis,vitiligo pityriasis rosea and eczema etc.
INDICATIONS:
Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.
Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis, vitiligo and eczema, is safe enough for pregnant women and children to use, and has none of the serious side effects .
UV lights slow abnormal growth of skin cells and can help create repigmentation.
FEATURES
* Stable and long usage life Philips special UV lamps as light source
* Narrow band UV light with high intensity
* Multiple configuration is optional, intelligent controlling
* Small volume, light weight, convenient to carry
* Unique structure, suitable for clinical and home use
* Voice prompt function
Product Parameter
| Item | Main Parameters |
| Application | Vitiligo, psoriasis, pityriasis rosea, eczema |
| Model | 4006B/ 4006A |
| Voltage | AC220V±10% 50Hz±2% or AC120V±10% 60Hz±2% |
| Package size | 325mm×235mm×345mm |
| Irradiation area | 104cm2 |
| Weight | 3kg, 5kg calculated as shipping |
| Intensity |
| UVA | UVB |
| KN-4006A | 1-50mW/cm2 | -- |
| KN-4006B | -- | 0.3-20mW/cm |
| Lamps brand and qty | H-shaped tube KN-4006A: 2 UVA; KN-4006B: 2 UVB |
| Lamp paras |
| UVA | UVB |
| Model | PL-S9W/10/2P | PL-S9W/01/2P |
| Power | 9W | 9W |
| Wavelength | 368nm±3nm | 311nm±3nm |
| Size | 166×26×12mm |
| Life time | 1000 Hours |
| Certificates | System certification: ISO 9001: 2008, ISO 13485: 2003 certification Product certification: obtained CFDA, FDA, CE product registration certification; |
Clinical Application >>
KN-4006B UV Phototherapy Answer To Question
1.How to set the treatment time of UVB lamp therapy
According to the skin color change, setup the time and doage
First treatment, time setup for 40 seconds,
After 6 to 8 hours, if the skin color is a little red, this is to say, it is the best treatment time.keep
the 40s for irradiation.
After 6 to 8 hours, if no any color change on the skin, please add to 10 seconds.
This is to say, time setups for 50s. The same operation way to increase the time (10s every time ),until the skin color only have a little red, at the time, it is the best treatment time.
After 6 to 8 hours, if the skin color is very red, please reduce 10 seconds. This is to say, time setups for 30s.According to the skin color change, adjust the treatment time.
2. Treatment Times Arrangement
3 to 5 times every week, Irradiation it every two days.
2 to 3 months as one step, after finishing the first step, please pause two week time, and then start next step treatment.
3. Normal skin needs to be covered?
You can cover the normal skin use the clothes when irradiation. Of course, no cover for the normal skin, it is also safe and no
damage. Only the normal skin maybe have a little red or black, but it will recover well after some time.
4. Differences Between Home Use and Professional Use ?
Biggest difference is the treatment area.
KN-4006B UV Therapy Use Method
1. Connect the device
2. Wear the UV Goggle
3. Setup the treatment time
4. Time over, device finishes the treatment
